LMH1237T

型號LMH1237T

Range: ±80g Sensitivity: 100mv/g Temperature Measurement Range: -40℃～+120℃ Built-in IEPE circuit, isolated output, constant current source power supply Solid and reliable laser sealing welding Connectors have side exit, suitable for locations with limited space. IP68, corrosion-resistant, suitable for harsh industrial environments

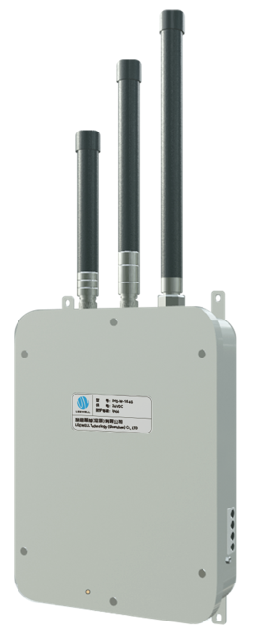

IMS-W-10

型號IMS-W-10

支持1路RS485接口，可連接DCS/PLC
支持以太網、4G、光纖、Zigbee等多種通訊方式
支持斷網數據存儲，聯網后自動補傳
靈活的數據采集策略配置，適應不同設備工況
防護等級：IP66

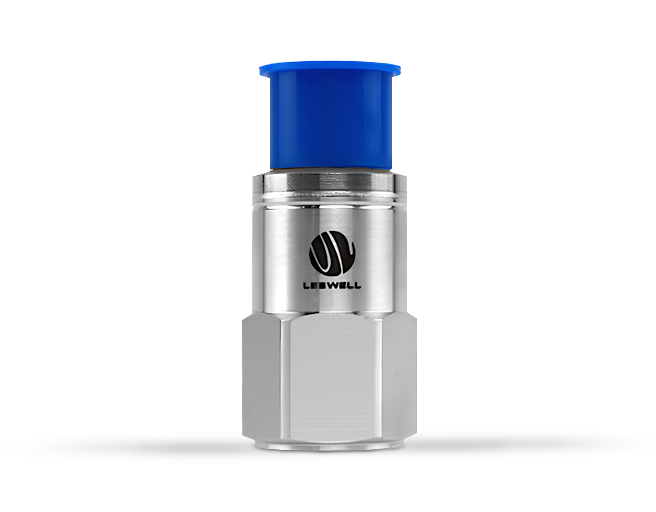

LMH1229T

型號LMH1229T

量程：±80g
靈敏度：100mv/g
測溫量程：-40℃～+120℃
內置 IEPE 電路，隔離輸出，恒流源供電
激光密封焊接，牢固可靠
防護等級 IP68
耐腐蝕，可用于環境惡劣的工業現場

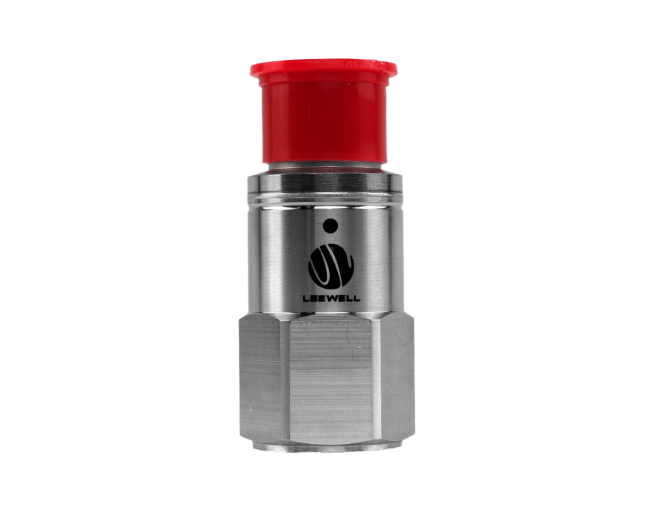

LML1230T

型號LML1230T

量程：±10g
靈敏度：500mv/g
測溫量程：-40℃～+120℃
內置 IEPE 電路，隔離輸出，恒流源供電
激光密封焊接，牢固可靠
低頻響應優秀
防護等級 IP68
耐腐蝕，可用于環境惡劣的工業現場

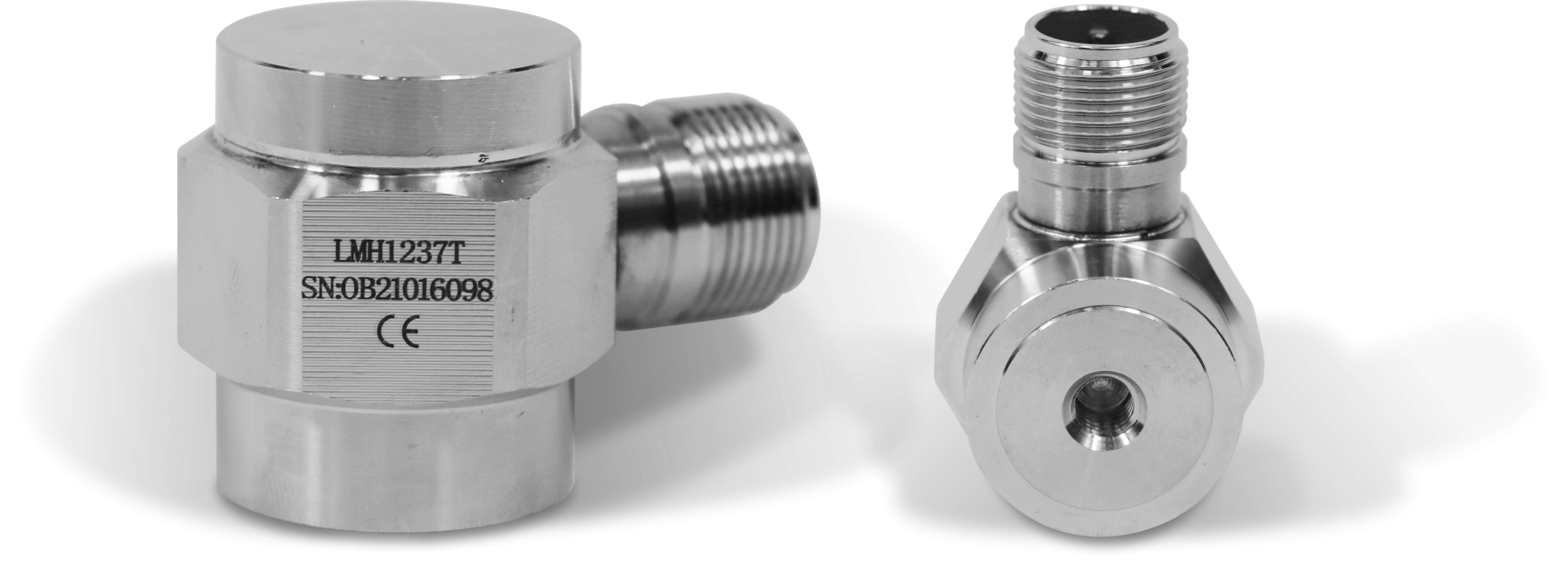

LMH1237T

型號LMH1237T

量程：±80g
靈敏度：100mv/g
測溫量程：-40℃～+120℃
內置 IEPE 電路，隔離輸出，恒流源供電
激光密封焊接，牢固可靠
連接器側出，可用于空間較小的位置
防護等級 IP68
耐腐蝕，可用于環境惡劣的工業現場

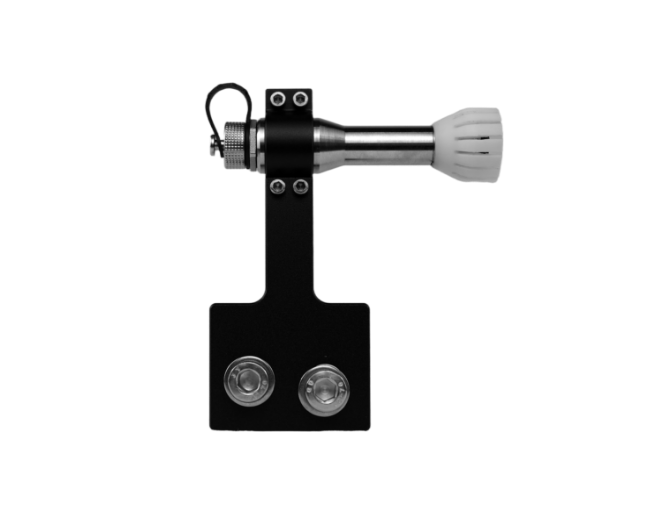

MA802-7

型號MA802-7

量程：3.15～16kHz±2dB
靈敏度： 40mV(-28dB)±2dB
工作溫度：-10℃~+80℃
特殊的聲學設計降低自由場頻率響應影響，滿足IEC 61672-1的要求
耐腐蝕，可用于環境惡劣的工業現場

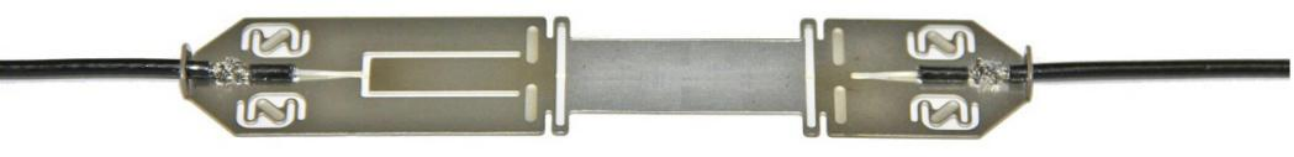

LF3155

型號LF3155

Operating Temperature: -40℃~+80°C Large strain measurement range Built-in temperature compensation Resistant to electromagnetic interference Electrowelded packaging for long-lasting durability

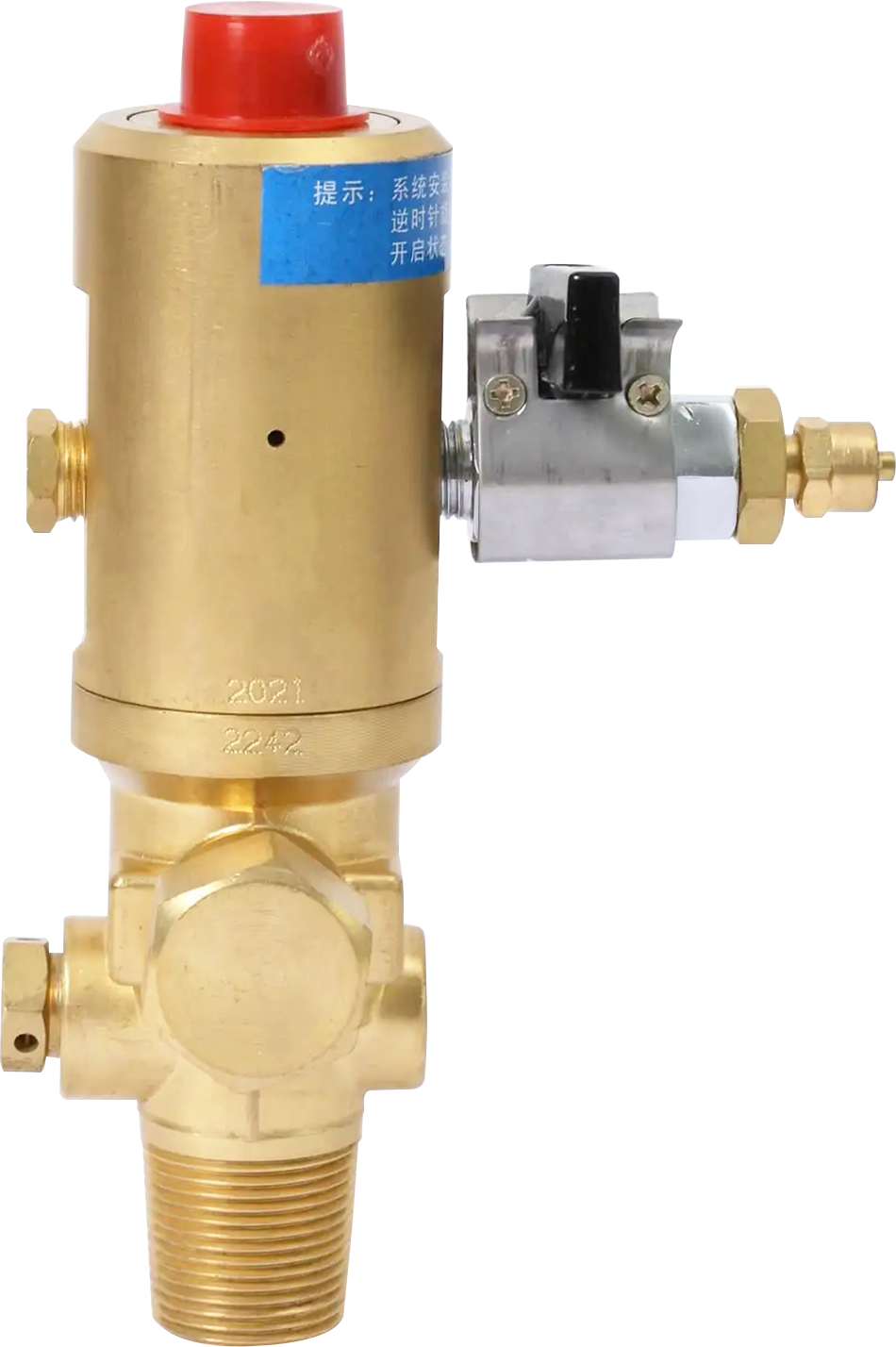

Container Valve

型號Container Valve

Adopt CuZn39Pb3, the working pressure is not less than 15Mpa . The hydraulic strength test is carried out at 1.5 times the working pressure kept for 5 minutes without deformation or leakage. The gas tightness test is carried out under 1.1 times the working pressure. When the valve is closed, there is no bubble leakage; when the valve is open, the leakage amount of bubbles in each connection sealing part should not exceed 20 / min. The salt spray corrosion test shows that there is no obvious corrosion damage in each part of the container valve and no performance decline. The safety release diaphragm of the container will burst at 1.25 (±0.0625) times maximum working pressure. The operation of the container valve is flexible, reliable, and not prone to any failure and structural damage.

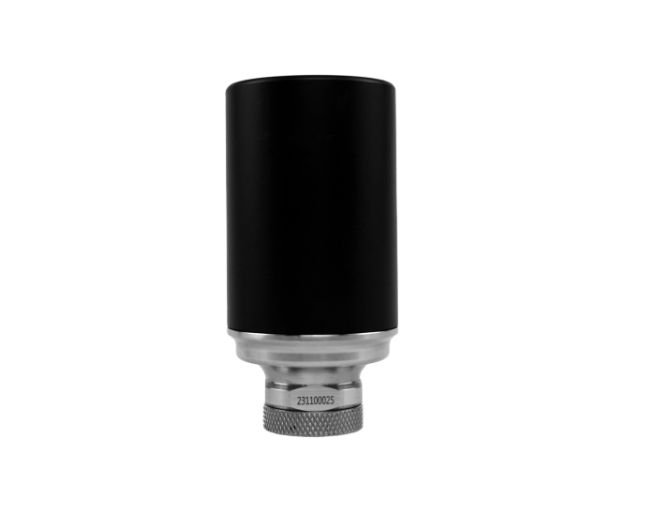

LW101

型號LW101

Measuring range: ±50g Temperature measuring range: -50℃~ +150℃ IP67 Vibration-temperature integration, high-frequency Ultra-low power design, long endurance

YHC24W

型號YHC24W

Explosion-proof mark: Ex ib I Mb RS485 interface able to connect to DCS/PLC Multiple communication methods including Ethernet, fiber optic, Zigbee, etc. Data storage during network outages, and automatic data upload upon reconnection IP66

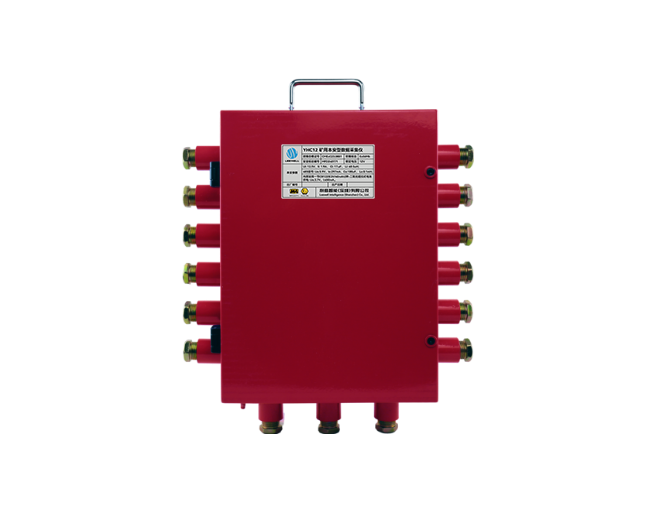

YHC12

型號YHC12

Explosion-proof mark: Ex ib I Mb Modular design, 8-channel IEPE acceleration input for data acquisition ADC acquisition, 8-channel fully synchronized sampling Four-channel speed input, supports speed-related data acquisition Two-channel RS485 interfaces able to connect to DCS/PLC Self-diagnostic function, automatically detecting short circuits and open circuits

GZW120/80W

型號GZW120/80W

Vibaration and temperature integrated Explosion-proof mark: Ex ib I Mb Range: ±50g Temperature measurement range: -50°C to +150°C Integrated vibration and temperature sensor, high-frequency response IP67

GSH3000

型號GSH3000

Explosion-proof mark: Ex ib I Mb Speed measurement range: 0~3000 r/min Rated supply voltage: DC 12V Output signal: 1 channel, (0~6000) Hz pulse signal IP54 Corrosion-resistant housing, suitable in harsh industrial environments

GWZ120/300

型號GWZ120/300

Explosion-proof mark: Ex ib I Mb Built-in IEPE circuit, isolated output, constant current source power supply Laser sealing welding, solid and reliable Suitable in harsh industrial environments Equipped with temperature and vibration monitoring functions IP68

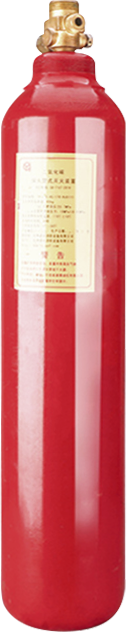

Fire extinguisher

型號Fire extinguisher

Steel seamless cylinders that complt with the GB5099-1994 standard. The maximum working pressure of the cylinder is 15 MPa. When subjected to a hydraulic strength test at 1.5 times the working pressure for 3 minutes, there is no leakage or significant residual deformation. When subjected to a hydraulic strength test at 1.1 times the working pressure, the container should have no bubble leakage. When subjected to a hydraulic strength test at 3 times the working pressure, the container shows no signs of rupture.

Alarm Box

型號Alarm Box

Dimension: 115×136×53mm Volume: 100 decibels Power supply: 9V carbon-zinc battery Battery replacement cycle: 3 months (in standby mode) Signal port I/O: (Input/Output)

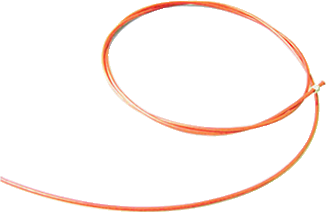

Fire Detection Tube

型號Fire Detection Tube

Outer diameter: φ8mm Inner diameter: φ4mm No brittleness or cracking at an -20℃, and no softening or deformation at 55℃ Not activate when maintained at 140℃ ± 2℃ for 2 minutes Activate within 20 seconds at 167℃ ± 8℃ The working pressure should not be less than 1.0 MPa

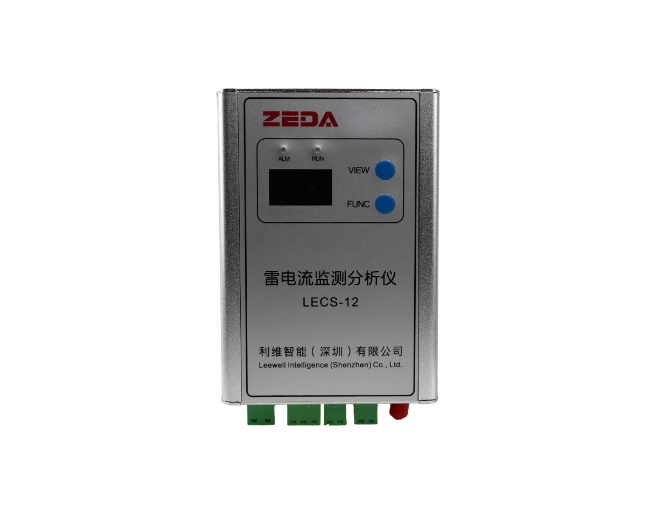

Lightning Analyzer

型號Lightning Analyzer

Power supply: DC10-28V Overall power consumption: ≤1W Lightning orotection capability: Imax (8/20us) 100KA Installation options: rail and bolt mounting Advanced electromagnetic compatibility design for ultra-low radiation Human-Machine Interface for monitoring, fault indication, and historical information inquiry Storing over 100 SPD historical alarm records and 500 lightning event records RS485 communication, easy to connect to monitoring center

Lightning Rod

型號Lightning Rod

Height: 1500mm Length (Lightning Receptor): 470mm Length (Support Rod): 1000mm Diameter: 22mm Four sets of ion generation systems for more precise lightning strike points No external power supply required Fully active early discharge, maintenance-free

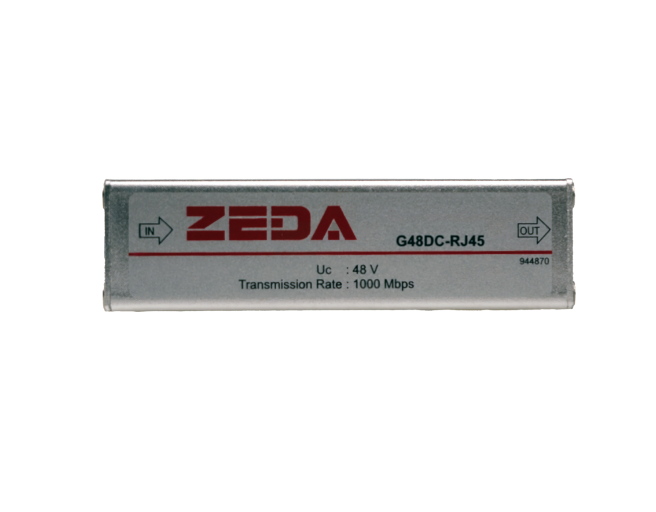

Signal protection SPD (Surge Protective Device)

型號Signal protection SPD (Surge Protective Device)

Nominal Voltage (UN): 48V Maximum continuous operating voltage (Uc): 48V Maximum continuous operating voltage (Uc): 34V Maximum continuous operating voltage POE (pair-to-pair): (Uc) 57V Low insertion loss, wide frequency range High surge current capacity, fully shielded Low residual voltage, easy wiring
